Anchors, Anchoring And Anchor Retrieval


There are Six Types of Boat Anchors



Types of anchors

• Plow Anchor with Roll Bar
• Bruce™ Claw Anchor
• CQR™/ Plow & Delta™/ Wing Anchor
• Danforth™/ Fluke Anchor
• Grapnel and Other Small Craft Anchors
• Mushroom Anchors

Having the right anchor and cable for your boat is important. If you don’t, rough winds, current and swells can cause it to drag, leaving your boat to drift. This is especially dangerous if you are asleep or swimming nearby. Make sure that your boat is well anchored and that the swivel is properly locked, and keep watch to detect signs of dragging.

When selecting an anchor, its holding power and the type of seabed in which it will be used must be considered. As well, the anchor must be of proper size depending on the pleasure craft. It is best to have a heavier anchor than needed, because a lighter anchor will not keep the pleasure craft in place during bad weather conditions.

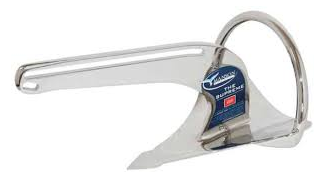

Plow Anchor with Roll Bar
I have the Manson Anchor on both my inshore 22 and my offshore 30, I believe that the Manson is amongst the Best Anchor made, and it has gotten me out from being stuck in structure offshore many times. No more anchor loss, rode loss, chain loss etc. (See my Manson Post Below)




New generation boat anchor
There are several anchors on the market today which are essentially plow anchors with roll bars. These include the Rocna, Manson Supreme, and Bugel.


Each of these anchors are essentially a variation on a plow style anchor. If you look at the plow portion of these anchors, you can see they are a lot sharper than traditional plows like the Delta/Wing and CQR. Analogous to a knife through butter, these anchors can penetrate the sea bottom a lot easier than the aforementioned anchors. The roll bar also helps it orient itself upright when setting.


These anchors have performed extremely well in third party tests. The biggest downside to these anchors is that because they are still patented, they can be very expensive. The roll bar along with the elongated plow can also make storing these anchors on bow rollers difficult.

• Pros: Very high holding power for many models.
• Cons: Expensive.
• Bottoms: Performs well in most bottoms

Bruce™ Claw Anchor

The Bruce, or Claw, remains one of the most popular anchors amongst recreational boaters in North America. The author is slightly biased, as this is my anchor of choice as well. The Bruce was developed in the 70s by the Bruce Anchor Group. Once their patent expired in the early 2000s, they stopped production of this anchor but many imitations have come along since.




Claw Boat Anchor
The Bruce is an excellent all-purpose anchor as it performs well in most sea bottoms including mud, sand, grass, rock, and coral. It sometimes has a hard time penetrating harder surfaces, such as clay. Due to the three-claw design, the Bruce often sets more easily than other anchors. It also resets easily if it is ever broken loose. On the downside, the Bruce has a lower holding power per pound than other anchors, meaning you’ll usually need a larger anchor than say the Delta/Wing.

• Pros: Performs well in most conditions. Sets easily.
• Cons: Awkward one piece design. Low holding power per pound.
• Bottoms: Performs well in most bottoms; Struggles in hard bottoms such as clay.

CQR™/Plow & Delta™/Wing Anchor, Delta



CQR/Plow & Delta/Wing Style Anchors
Both the CQR/Plow and the Delta/Wing are a plow style anchor. The most significant difference between these anchors is the fact that the CQR has a hinged design whereas the Delta is a one piece design.


The CQR is one of the oldest styles, dating back to the 30s and to this day, it remains one of the most popular anchors amongst blue water cruisers. Despite this, it has relatively low holding power and it consistently struggles in independent tests. It’s also rare to find a CQR under 25 lbs lending itself to the saying “There’s no such thing as a small CQR”. Despite these shortcomings, the hinged design makes it more responsive to wind and tide changes as compared to other anchors.


The Delta is arguably the most popular anchor on boats today, and is the standard anchor of choice used by most boat manufacturers. It has a very reasonable holding power per pound (about 50% more than the Bruce).


Both the Delta and the CQR perform well in most bottoms, struggling the most in rock.

• Pros: Performs well in most conditions. Fits most bow rollers.
• Cons: Hinged design can make stowage awkward. "No such thing as a small CQR/Plow anchor".
• Bottoms: Performs well in most bottoms; Struggles in rock.

Danforth™/Fluke Anchor




Danforth/Fluke Boat Anchor
The Danforth, or Fluke anchor, remains a very popular anchor choice amongst boaters. The Fortress is also a popular Fluke style anchor, different from the Danforth in the fact that it comes apart and it constructed of light-weight, high-strength, aluminum.


The Fluke performs excellent in mud and sand, potentially the best of any anchor style. The downside is that outside of these bottoms, it does not perform at well. Therefore it is a mud/sand only anchor, which fortunately is what most bottoms are comprised of.


Whether or not it is used as a primary anchor, a Fluke anchor makes an excellent choice as a secondary anchor.

• Pros: Performs well in mud and sand. Arguably the most popular general purpose anchor. Stows easily on most bow rollers.
• Cons: Does not perform well outside of mud/sand.
• Bottoms: Performs excellent in mud/sand. Performs poorly in other bottoms.

Grapnel and Other Small Craft Anchors



Grapnel Boat Anchor
A Grapnel Anchor is generally used for small boats such as Kayaks, Dinghies, Canoes, etc. It’s also popular amongst fishermen.They fold up very compactly and are easy to stow. A Grapnel’s holding power comes from hooking onto another object, such as a rock. When it does hook, it can create immense holding power, which can also make retrieving the anchor difficult in such cases.

• Pros: Great for use as a lunch hook. Folds to allow for compact storage.
• Cons: Not appropriate for non-temporary anchorage.
• Bottoms: Rock or other situations when it can hook onto an object

Mushroom Anchors




Mushroom Anchor
Mushroom anchors are amongst the most popular anchor used for permanent mooring buoys. As the silt from the sea-bottom builds up over these anchors, it can result in extreme holding power, up to 10x the holding power of its actual weight. As a mooring buoy, the mushroom anchor is an excellent choice, however, it is ineffective in most temporary anchoring situations.

• Pros: Great for use for permanent mooring buoys.
• Cons: Not appropriate for non-permanent moorings.
• Bottoms: Mud/Sand.

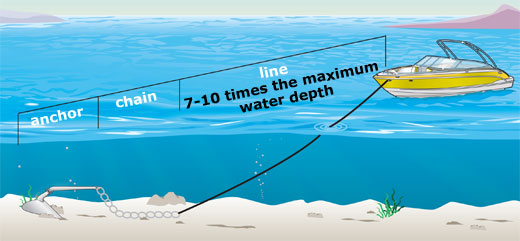

- Length of the rope

Anchor - Length of the rope

Regardless of the type of anchor, it must fitted with not less than 15 m of cable, rope or chain or any combination of them, carefully secured to the bow of the boat. Transport Canada require a minimum length 5 to 10 times the depth of the water when dropping anchor line on a pleasure craft. Neither rope nor chain is fundamentally superior. They each have their advantages and disadvantages. However, for small boats, it is recommended to attach an elastic element such as a bending or a shock absorber to the anchor line, in order to absorb sudden shocks that can occur.

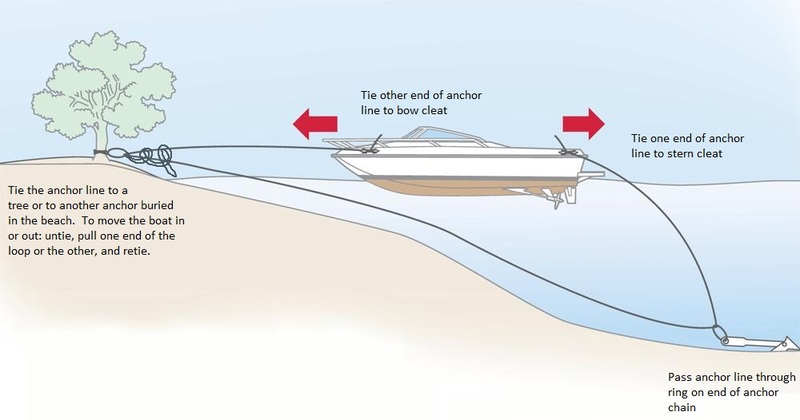

Clothesline Anchoring Revisited
This is Great for anchoring on sandbars.

In the past there has been some discussion about how to do a clothesline anchoring system. There are several ways to do it - some are simple, some complex.

This is my favorite method when anchoring up at Diapering Land or any Sanbars

1. Tie one end of the anchor line to the bow cleat.
2. Run the anchor line through a ring on the end of the anchor chain.
3. Tie the other end of the anchor line to the stern cleat.
4. Drop the anchor a bit offshore.
5. Move the boat close to shore, to knee deep water or right to the beach.
6. Step out, grab the shore anchor and the anchor line loop and take them ashore.
7. Bury the shore anchor in the beach and tie the anchor line to it as shown below. Or tie to a log or tree.
8. To reel the boat in and out, untie, pull one side of the anchor line loop or the other, and retie.

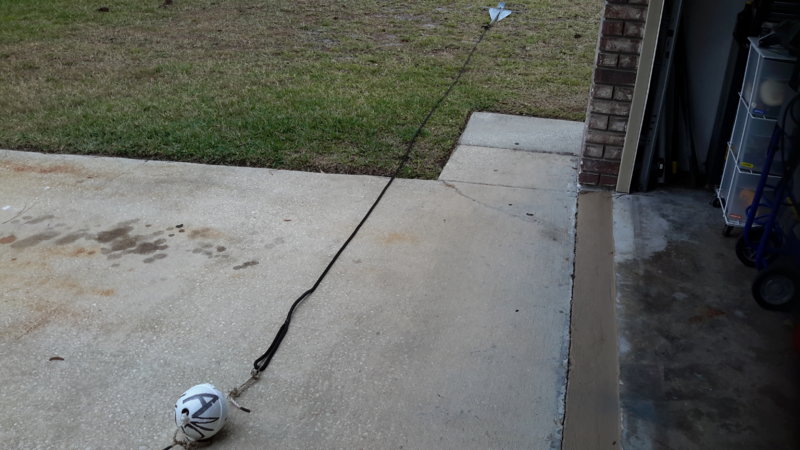

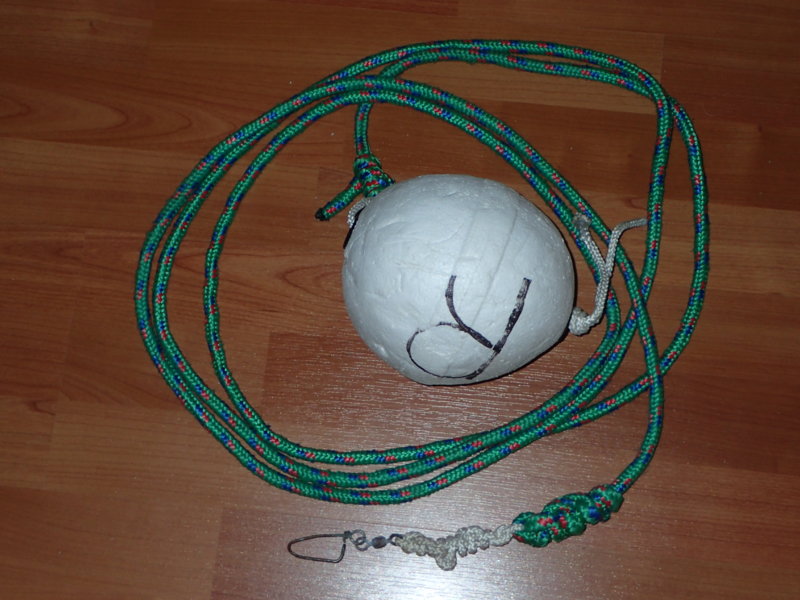

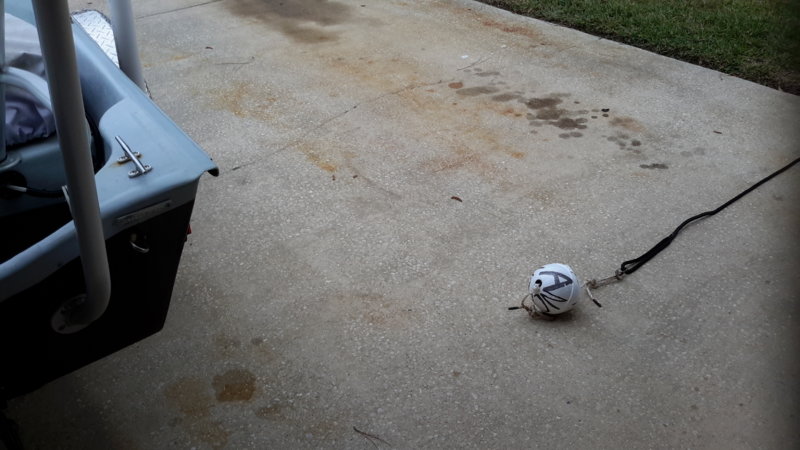

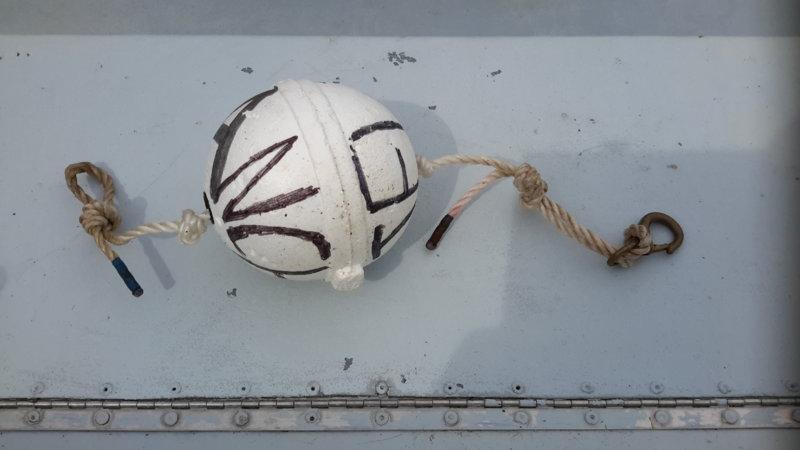

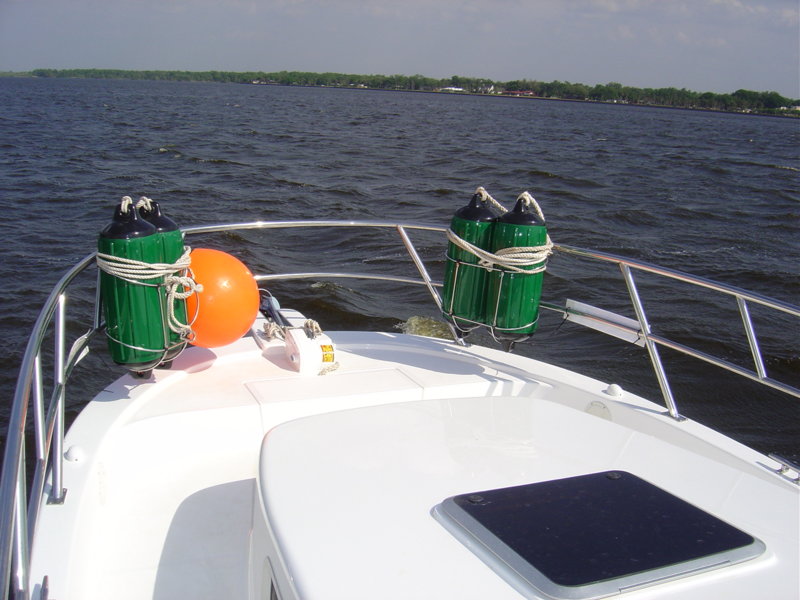

How to use an Anchor Ball
always carry an anchor ball just in case

If you do not have a windless on your boat, invest in an anchor ball, with it you will not have to pull up the anchor anymore, let the ball pull it up, and you just pull in the line. That will save your back.




how to use a Anchor ball

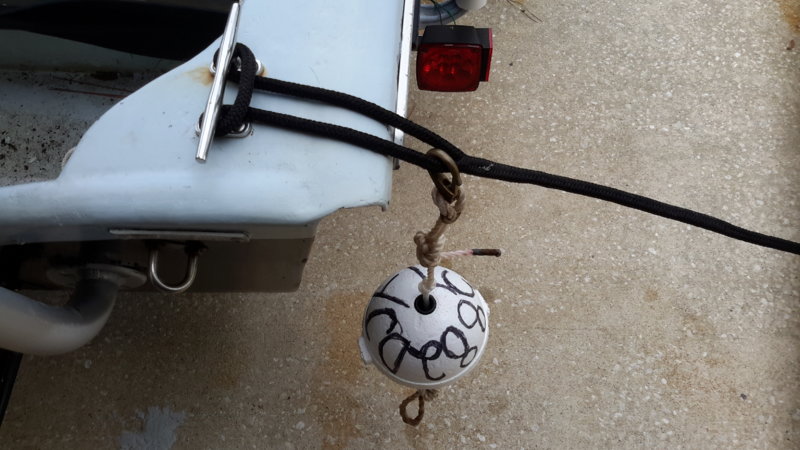

Just attach the ring around your anchor rode / "rope" and drop into the water.





If you don’t have a windlass (electric or hydraulic anchor puller on bow) on your boat, a simple anchor puller will work just fine to safely pull your anchor. There’s several devices available on the market including EZ Marine Anchor Puller and several other brands that attach to your anchor line. These devices allow you to stop pulling and pinch the line preventing the anchor from falling back to the bottom.

I prefer the ring style system because of the super small diameter Kevlar line I use. The high tensile strength, small diameter line slips through the pinch style pulling devices, which make the ring my only option. The ring shown to the left is an inexpensive device available at most marine supply stores for less than $20. You can also choose a solid stainless steel ring, but only if you visit a marine supply store such as LFS Marine that has commercial fishing supplies. The solid rings come in several sizes, but my top choice is a ring that spans 10 inches across. This size works well for me and should work for you as well.

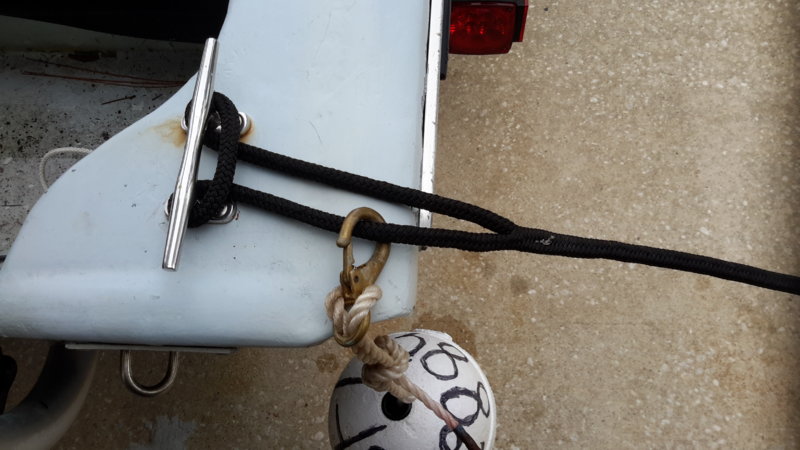

Attach a big round buoy to the ring with strong rope and you have an anchor puller. When it comes time to pull anchor cleat the anchor line off to a starboard side cleat at midship. If you have a small boat, you can pull from the bow cleat, but keep a watchful eye on the anchor line. When ready to pull the anchor aim up current from the buoy and keep your anchor line to the starboard side of the boat. This gives you the best view of the anchor line while pulling. Go fast enough to maintain control while keeping in the anchor line away from the prop. The drag of the buoy allows the anchor line to pass through the anchor pulling device. Also watch other boats in the area and don’t drive to close to them while pulling anchor. This is a good reason why you should not anchor to close to other boats.


For offshore I always use a Windless to drop anchor and to lift anchor. Along with a ball as backup.



http://www.shrimpnfishflorida.com/f...r-fishing-offshore-structure.3548/#post-52381


Posted by:


Sam "aka" Nautical Gator

Forum Captain,
officer in command,
Site Creator, Club Member,
Peacekeeper, Admin and Site Moderator…

It's a tough job, but someones got to do it!



How to use an Anchor Ball



How to prevent anchor loss when your anchor gets stuck in structure or rocks.

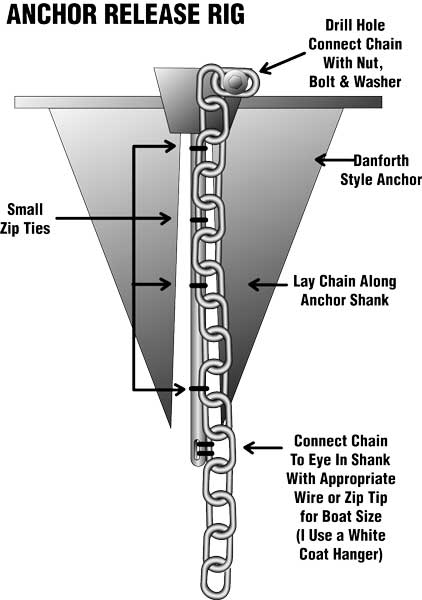

Anchor Release Rigging
The below methods will help keep you from losing your anchor in the rocks.

How to attach an Anchor with Zip Ties

Offshore / Inshore







This is how I secures the rode to my Kayak Anchor

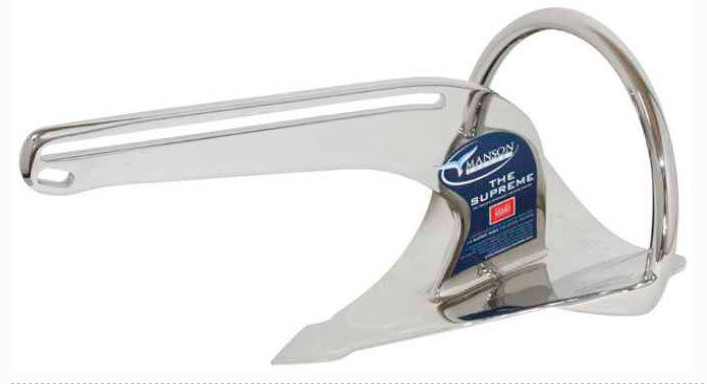

NOTE: The Manson Anchor does not need a breakaway because it has a slot in the shaft which allows the chains cleat to slid to the back of the anchor and lift the anchor out of the rocks.

Note the long slot in the shank to which the shackle is attached for use in reef or rocky areas.



I have the Manson Anchor on both my inshore 22 and my offshore 30, I believe that the Manson is amongst the Best Anchor made, and it has gotten me out from being stuck in structure offshore many times. No more anchor loss, rode loss, chain loss etc.

Since 1972, Manson have been making anchors in New Zealand, a country that boasts some of the harshest boating conditions in the world.


The Manson is amongst the Best Anchor made.



In their current range they have the Supreme, Plough, Kedge and Ray. They are all suited to one specific style of anchoring chores, with the top of range Supreme probably best suited to dual roles given its very special design. In fact the Manson Supreme range are very special anchors indeed, being reviewed by Lloyds Registry of London to be registered as having Super High Holding Power, which makes it the first and only production anchor to do so.

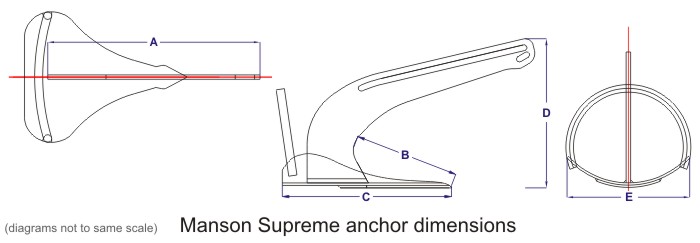

There are quite a few anchors within the Supreme range, from 5-400lb weights, and all share the same heavy-duty and unique features.



I saw the Supreme, thanks to its unique features, as being the anchor most suited to a range of Australian fishing activities. It can handle a boat anchored in a swiftly flowing estuary channel during one fishing expedition and then in action within a rock strewn or rubble bottom situation, or maybe even an impoundment.

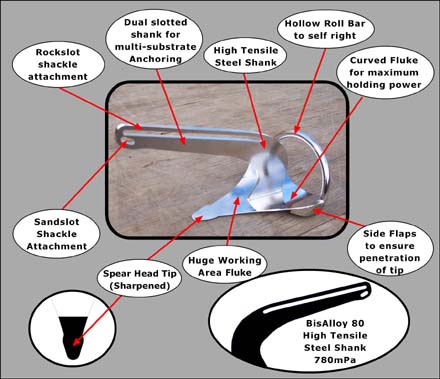

Manson's Supreme is claimed to have extra strong holding capability plus the ability to correctly and quickly set into strata once in contact with the bottom. This is due to the specially designed half circle section that turns the anchor upon contact so that the concave fluke can quickly dig into the bottom and make fast. The idea is to use sufficient chain drop to facilitate the process if one intends to consistently anchor in areas where current is expected to be swift flowing.



I've recently had the opportunity to water test a Supreme 15lb model. This is quite a compact anchor when compared to the old style of pick with its large side bars and twin flukes we have become accustomed to over the years.

Manson rate the anchor as suited to craft from 4.8-5.8m in length. I used it to anchor my new TABS P420 Bullshark in a couple of situations with absolute ease and success.

In the current at the local estuary the pick went into 'hold' mode within seconds despite me deliberately throwing it over the side with the fluke section uppermost to see how long it might take to right itself and dig in. Manson's claim that the Supreme correctly aligns itself for operation appears to be accurate.

In the rock, reef, freshwater, situation there needs to be a small change to the anchor set up, as follows. In the shank of the Supreme there are two ways that the usual large shackle can be attached: for use in a sandy or muddy bottom attach the shackle to the extremity of the shank for maximum leverage; for use in rocky or reef areas attach the shackle to the slot in the shank, which allows the anchor to become free as the boat moves forward and the leverage from the shackle changes from the furthest point away from the fluke to directly over it. This is a very smart set up and does indeed give the Manson Supreme true dual-use capability.

I tried it out in a few reef situations. Although somewhat dubious about the thought of the anchor really fouling (the use of goggles and flippers), I was very pleased to see the pick come up soon as the boat took up the strain in a forward motion.

I have given the Manson Supreme full marks in every sense of the term dual-use capability. It also has durability and strength, and one look at the very rugged construction of the Supreme confirms that it will indeed last a very long time.

Freshwater use
I use my boat in a lot of freshwater situations and to be honest I would be reluctant to drop this or any extra strong anchor down into fallen trees or submerged timber as the likelihood of the anchor becoming well and truly fouled in a fork of a big chunk of downed timber, is just too much of a chance.

I would never hesitate to anchor over a school of bass, but to drop it into places where the sounder clearly indicated there was fallen timber – and big timber at that – is just asking for a lot of luck when it's time to leave. A skinny little traditional reef anchor with its flexible tines is the way to go in that situation.

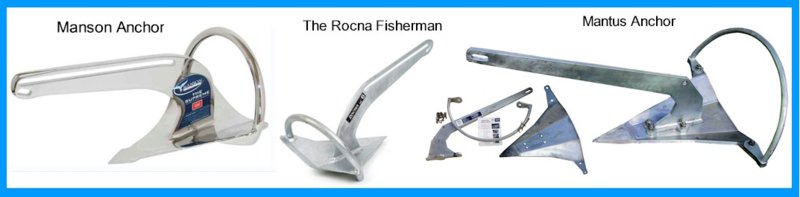

There are other Anchors like the Manson, like the Rocana and Mantus Anchors.
That all work in the same manor.
The Manson Anchors and The Reocna are both slip shank anchors (BEST)
the others claims to be better, The Mantus comes apart and is put together with bolts. The Mantus also does NOT have a Slip shank, which is what gets you unstuck from when stuck in rocks.

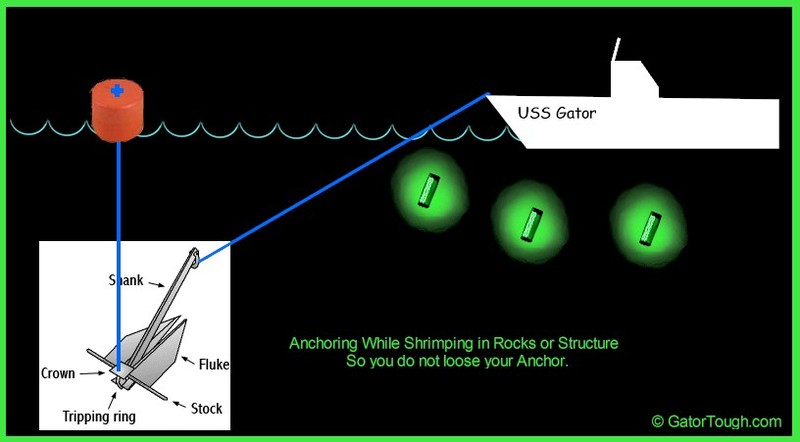

Anchor Lift Rope, how to use a Anchor Lift Rope while shrimping

When shrimping in areas that have rocks and structure, using one or two anchor method, it is a good idea to use a Anchor Lift Rope attached to your Anchor... This will avoid you from loosing your anchor in the rocks or structure! Since the water when shrimping is only 12 ft or less...

It is also for Safety, if a boat, or barge is coming your way, you can drop the anchor rode into the water and drop back faster getting out of the way of the oncoming barge. then when all is clear, go back to your original spot and your anchor will be in the same place, simple pull up the float rope and grab your anchor rode and drop your anchor back down and your anchored back in the same spot.

The lift rope goes on the back side of the anchor and lifts the anchor out backwards...



(See) Shrimp Light Deployment!

shrimp light deployment You may want to Deploy your Shrimp Lights





mooring the boom with seapro boom anchoring system
anchors are used to moor the seapro boom as follows:

• assemble the anchors, chain, anchor line, trip line and buoys as shown in the diagram, below.
• set the anchor, then attach the anchor line to the anchor point on the bottom of the boom.
• the length of the anchor line should be three times the water depth (if possible). each anchor bucket has 200 feet of anchor line (in 50’ sections) and 200 feet of buoy line (in 100’ sections).



that is the method just above your post in the USS Gator photo



for the inshore river is Just use a heavy duty offshore snap swivel. Clips on and off. I needed to drill a hole for the snap swivel to fasten to the anchor. Works like a charm for me.



Sorry Bill I am going to have to disagree with that method, there is a very good chance that the anchor rode will get caught in the tugboats propeller like that.



Rigging your anchor as a breakaway for offshore Structure fishing....





NOTE:

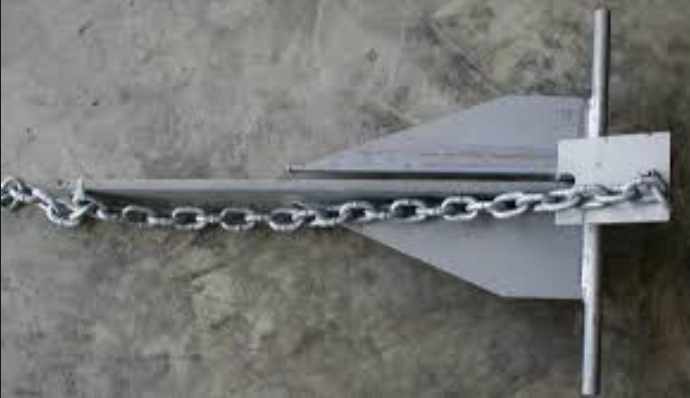

The only problem I see with a Danforth Style Anchor, is that the chain can get in the way of the Anchor performance, and if it lands on the wrong side the chain will be on the bottom etc... I think it would be better to have a plow style anchor, Claw Type or a Bruce style anchor for Breakaways.

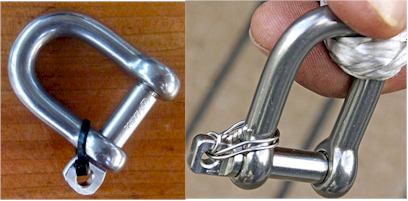

You should secure your shackle pin with rode, zip tie, or wire. Wire works best.

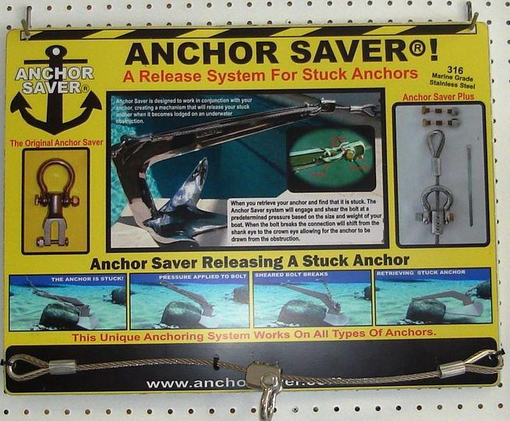

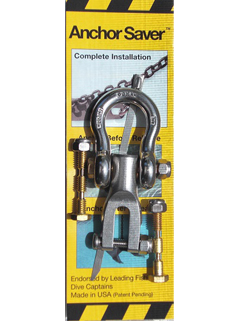

There is also a product call Anchor Savor
